Which U-Shaped Kitchen Cabinet Layout Fits Your Room?
Quick Summary
A U-shaped kitchen layout wraps cabinets and counters along three walls, giving more storage and prep space than most layouts in the same footprint. Its strength is the work triangle connecting sink, stove and refrigerator. The main trade-off is keeping an aisle of about 42 to 48 inches between the arms.
- Keep 42 to 48 inches of aisle between facing base cabinets for one cook.
- Standard base cabinets are 24 inches deep and 34.5 inches tall to the countertop.
- Shorten one arm to 12-inch-deep base cabinets to open up a small room.
- An island needs 42 inches of aisle for one cook and 48 inches for two.
- Do not let an island block the refrigerator or oven door.
Table of Contents
- Why a U-Shaped Kitchen Layout Works So Well
- Measure Your Kitchen Before Choosing Cabinets
- U-Shaped Kitchen Dimensions and Aisle Clearances
- Small U-Shaped Kitchen Ideas That Feel Open
- Corner Cabinet and Storage Layout Ideas
- U-Shaped Kitchen with Island Layout Ideas
- Planning Your U-Shaped Kitchen Next Steps
- Frequently Asked Questions
Why a U-Shaped Kitchen Layout Works So Well
Last Updated: October 29, 2026
A U-shaped kitchen layout wraps cabinets and counters along three walls, which gives you more usable surface and storage than most other layouts in the same footprint. For homeowners on a strict budget, that efficiency matters.
The core advantage is the work triangle. Sink, stove and refrigerator sit on three connected walls, so you rarely walk more than a few steps between them.
A few practical benefits stand out:
- Storage density: Three walls of base and wall cabinets hold far more than a single galley run.
- Prep space: Long, uninterrupted countertops give you room for cutting boards, small appliances and cooling racks.
- Traffic control: The layout keeps foot traffic out of the cooking zone when the open side faces a dining area.
The main trade-off is clearance. A U-shape needs enough width between the arms to open dishwasher, oven and drawer fronts without bumping into someone. We cover those numbers in the next sections.
Measure Your Kitchen Before Choosing Cabinets
Start with accurate measurements, because every cabinet decision depends on them. Follow the full kitchen and cabinet planning process step by step before you order anything.
Mark the positions of existing plumbing and the range, and note the ceiling height.
A common mistake is ordering cabinets from a floor plan drawn without the wall thickness, baseboards or trim. Measure the finished surfaces you will actually build against.
U-Shaped Kitchen Dimensions and Aisle Clearances
Clearance drives the whole design. Most U-shaped kitchens work best with an aisle of about 42 to 48 inches between facing base cabinets for a single cook, and closer to 48 inches or more when two people share the space.
Plan for these typical spacing points:
| Element | Typical Dimension | Why It Matters |
|---|---|---|
| Aisle between arms | 42 to 48 inches | Room to open doors and move |
| Standard base cabinet depth | 24 inches | Counter and storage depth |
| Standard base cabinet height | 34.5 inches (to countertop) | Comfortable working height |
| Upper cabinet depth | 12 inches | Keeps the path clear |
| Gap from counter to upper cabinet | 18 inches (commonly) | Space for appliances and prep |
Check these figures against your local building code and your appliance manuals, since door swing and access requirements vary by model.
Small U-Shaped Kitchen Ideas That Feel Open
A small U-shaped kitchen can feel open if you control visual weight and protect the aisle. See compact galley-style cabinet layouts for how other tight kitchens handle limited floor space. The mistake most homeowners make is squeezing three full-depth runs into a room that only supports two and a half. The fix is a cabinet-by-cabinet plan that trades depth and height where it matters least.
A compact plan for a 9-by-10-foot room
Here is a working configuration for a roughly 9-by-10-foot kitchen with one window on the short wall:
- Long wall (10 feet): 24-inch-deep base cabinets with a 30-inch sink base centered under the window, flanked by a 24-inch drawer base and an 18-inch drawer base. Uppers are 12 inches deep and 30 inches tall to leave 18 inches of backsplash.
- Short walls (9 feet each): 24-inch-deep base runs that stop 36 inches short of the open side, so the aisle stays at least 42 inches wide. Use 12-inch-deep uppers only on the wall without the range hood.
- Range wall: a 30-inch range flanked by 15-inch base cabinets. Skip the microwave-over-range hood if ceiling height is under 96 inches; a low-profile hood keeps the sightline open.
That plan yields roughly 14 linear feet of base cabinets and 8 linear feet of uppers, enough for a single cook without turning the room into a tunnel.
Three moves that buy visual space

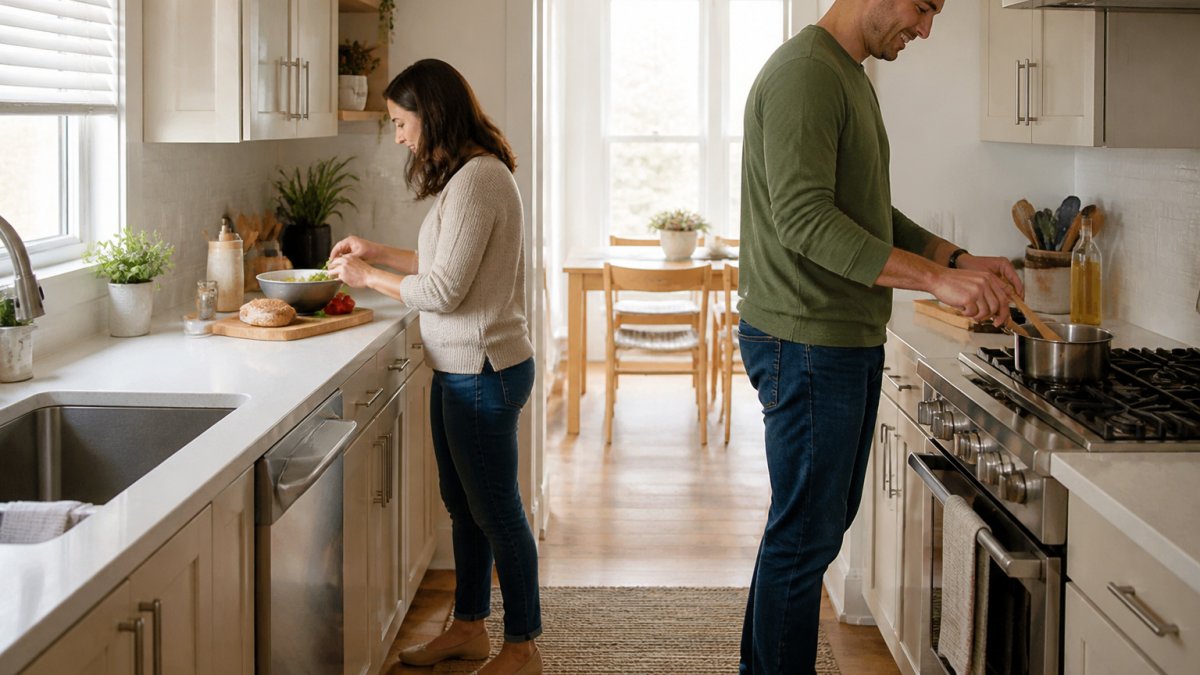

- Shorten one arm to 12-inch-deep base cabinets. A shallow run on the least-used wall holds small appliances and pantry goods while opening the aisle by a foot. Most cabinet lines offer 12-inch-deep base boxes in the same door style.
- Drop the uppers on the window wall. Base cabinets plus a sill-height counter keep the window unobstructed and make the room read wider. Move the displaced storage to a tall pantry at the end of one arm.
- Choose a continuous counter. One unbroken surface in a light quartz or butcher block reads as larger than several pieces joined at seams. Keep the backsplash tile to a single color to avoid visual chopping.
Clearance rules for tight rooms
Even in a small U, keep at least 42 inches between facing base cabinets for a single cook. If the room cannot support 42 inches across the full U, shorten one arm rather than narrowing the entire aisle, a 36-inch aisle works for one person but blocks dishwasher and oven doors from opening fully. Check appliance manuals for door swing; a standard dishwasher needs about 24 inches of clearance in front of the door when open.
Dover - Corner Base Cabinet Bifold Doors W/2 Lazy Susans with Metal Susan →
Storage that earns its footprint
In a small U, every corner and every inch of height matters. Use a blind-corner pullout or a lazy Susan in each corner base, and carry cabinets to the ceiling with a 12- to 15-inch-deep top row for seasonal items. A tall pantry with rollouts at the end of one arm replaces a crowded wall of uppers and keeps dry goods visible.
Corner Cabinet and Storage Layout Ideas
Corners are where U-shaped kitchens lose the most space. A standard corner base cabinet leaves a dead zone unless you add hardware that reaches into it.
The Dover corner base cabinet with bifold doors and wood lazy Susans, priced at $1,018.00, is one option for that corner.
Use the corner for items you reach for less often, such as stock pots, serving platters and small appliances, and keep daily-use items in the drawers closer to the sink and range.
U-Shaped Kitchen with Island Layout Ideas
An island inside a U-shaped kitchen is the layout's biggest upgrade and its biggest risk. If you are weighing sink placement, the diagonal corner sink base with front-only doors is an option that fits this arrangement. Done well, it adds prep surface and a social anchor. Done poorly, it blocks the work triangle and turns the U into a maze.
Size the island to the U, not the room
A U-shaped kitchen with an island needs enough floor area for three zones: the U's aisle, the island itself, and the walkway around the island's open side. A common pattern is:
- Aisle between island and facing base cabinets: 42 inches minimum for a single cook, 48 inches when two people work at once or when the island has a sink or cooktop.
- Island depth: 36 inches for a prep-only island, 39 to 42 inches when you add seating on the open side.
- Seating overhang: 12 inches of counter overhang for stools, 15 inches for comfortable legroom.
If the U's interior width is under about 10 feet, a full island usually will not fit with comfortable clearances. In that case, a peninsula attached to one arm delivers the same social benefit without stealing aisle width.
Where the island belongs in the work triangle
The work triangle connects sink, range, and refrigerator. An island should sit inside or just outside that triangle, not between two of the three points. A common mistake is placing the island directly across from the range, which forces the cook to walk around it to reach the sink. Better placements:
- Parallel to the range wall, offset toward the open side. The cook turns from range to island without crossing the aisle.
- Across from the sink, with the prep sink on the island. This splits the triangle into two shorter legs and works well when the main sink sits under a window.
- At the open end of the U as a transition to the dining area. This keeps the cooking zone intact and gives the island a secondary role as a serving surface.
Island configurations that work in a U
- Prep island with a drawer base and a 12-inch overhang. No plumbing, no venting, the simplest and least expensive option. Pair it with a 24-inch drawer base and a 15-inch cabinet for cutting boards and knives.
- Island with a secondary sink. Adds a prep sink and a small dishwasher if the main clean-up zone is on the far arm. Requires plumbing in the floor, which is easiest during a remodel.
- Island with a cooktop and downdraft vent. Keeps the cook facing the room, but downdraft vents are less effective than hoods and cost more to install. Confirm the vent route before committing.
Clearance checks before you order
Measure the distance from the island edge to each appliance door. A refrigerator door needs roughly 24 inches of swing clearance; a dishwasher needs about 24 inches in front of the open door; an oven door needs enough room to open fully without hitting the island. If any of those clearances fail, shrink the island depth or shift it toward the open side rather than narrowing the main aisle.
Lighting and outlets for the island
An island needs its own task lighting, usually two or three pendants or a linear fixture, plus at least one outlet on the island for small appliances. If the island has a sink or cooktop, plan the electrical and plumbing rough-in before the floor is finished. A pop-up outlet keeps the countertop clear when not in use.
Planning Your U-Shaped Kitchen Next Steps
Finalize your measurements, sketch the three walls with the aisle clearances above, and decide where the sink, range and refrigerator will sit. Then build your cabinet list wall by wall, noting which corners need hardware and which runs need full-height storage.
Once the plan is set, price the layout against your budget and check the delivery and assembly timeline with your own schedule.
Frequently Asked Questions
What is the best layout for a U-shaped kitchen?
The most effective U-shaped layout places the sink on the base wall, with the stove and refrigerator on the two side walls so the work triangle stays short. Keep each leg of the triangle roughly between 4 and 9 feet, and avoid placing the refrigerator across from the dishwasher, which blocks access. Leave at least 42 inches of aisle space between opposing cabinets for a single cook and 48 inches if two people work together. Frugal Cabinets Online offers base cabinets such as the Dover Sink Base Cabinet W/2 False Drawers and Center Stile at $671.00.
How much space do you need for a U-shaped kitchen?
A functional U-shaped kitchen usually needs a room at least 10 feet by 10 feet, though 10 by 12 feet gives more comfortable clearances. The aisle between the two long runs should be a minimum of 42 inches, and more if the kitchen is a walkthrough space. Measure wall lengths carefully, including door swings and window locations, before selecting cabinet widths. Planning around standard widths helps you avoid costly filler panels.
How do you make a small U-shaped kitchen look bigger?
Use lighter cabinet finishes, keep upper cabinets full height to the ceiling, and choose slim pulls to reduce visual clutter. Continuous countertops with no breaks make the work surface feel larger, and under-cabinet lighting helps the space read as open. Replacing one upper cabinet with open shelving can lighten the wall without sacrificing much storage. The Dover Blind Base Cabinet is listed at $753.00.
How do you use corner cabinets in a U-shaped kitchen?
Corner cabinets are where U-shaped kitchens most often waste space, so plan them early. Lazy Susan corner units give access to deep corners, while blind base cabinets pair with a drawer or door on the adjoining run. The Dover Corner Base Cabinet Bifold Doors with Two Wood Lazy Susans is priced at $1,018.00. For a larger budget, the version with metal Susan drawers is available at $3,370.00.
Can you add an island to a U-shaped kitchen?
Yes, but the island must keep at least 42 inches of clearance on every side, and 48 inches is better if the kitchen is used by more than one person. Measure the open space between the two side runs before choosing an island length, because a 4-foot island often needs a 12-foot-wide room. Use the island for prep or seating rather than a second sink to keep plumbing costs down.
